Chromatographic media


Thoth Ion Series ThothTM S120 、 ThothTM S200
Uniform Customized Strong Cation Exchange Agarose Medium
Product Description

The ThothTM S120 and ThothTM S200 represent a new generation of monodisperse, large-diameter strong cation exchange resins, featuring 120 μm and 200 μm agarose-based matrices. Specifically engineered for the rapidly evolving Synthetic Biology sector and industrial-scale fermentation, these resins offer short residence times, exceptional mechanical strength, and ultra-high flow velocities. They are the premier choice for manufacturers seeking to maximize production throughput and operational efficiency.
The key features of ThothTM S120 and ThothTM S200:
1)Customized 120μm、200μm particle size provides exceptional resolution;
2)Highly cross-linked rigid polymeric backbone provides superior pressure-flow characteristics and enhanced mechanical stability;
3)Optimized pore structure maintains high dynamic binding capacity even at reduced residence times;
4)Efficient CIP performance, enabling easy cleaning and rapid production readiness.
we also provide customized particle size options to offer bioprocessing clients maximum flexibility in optimizing downstream purification.



Technical Specifications
  ThothTM S120 ThothTM S200
Matrix High-strength agarose beads High-strength agarose beads
Average Particle Size 120 um 200 um
Ligand - Sulfopropyl - Sulfopropyl
Dynamic Binding Capacity ~80 mg Lysozyme /mL
(4min RT 10% breakthrough)
~60 mg Lysozyme/mL
(4min RT 10% breakthrough)
Max. Operating Pressure 1 Mpa 1 Mpa
Product Information
Product Packaging Cat.No.
ThothTM S120
Uniform Strong Cation Exchange Agarose Medium
100 mL
500 mL
1 L
5 L
30 L
100 L
TT905262
TT905263
TT905264
TT905265
TT905266
TT905267
ThothTM S200
Uniform Strong Cation Exchange Agarose Medium
100 mL
500 mL
1 L
5 L
30 L
100 L
TT905272
TT905273
TT905274
TT905275
TT905276
TT905277

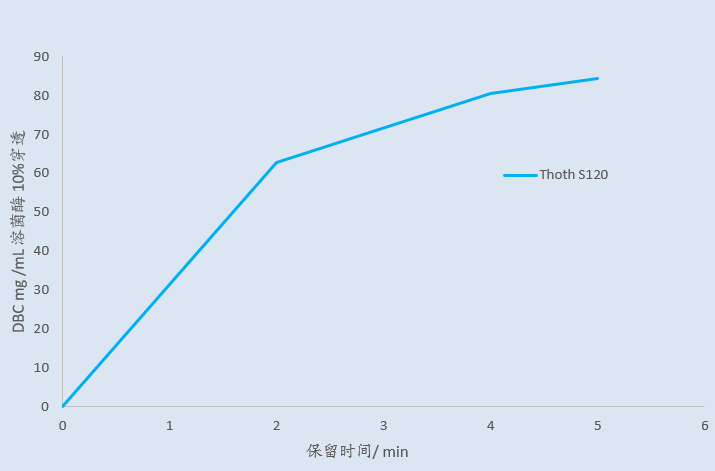

  • Figure1:
    Dynamic Binding Capacity of ThothTM S120

  • Figure2:
    Dynamic Binding Capacity of ThothTM S20
